SCS_PULSE_STRETCHER

Published:2009/7/17 2:45:00 Author:Jessie | From:SeekIC

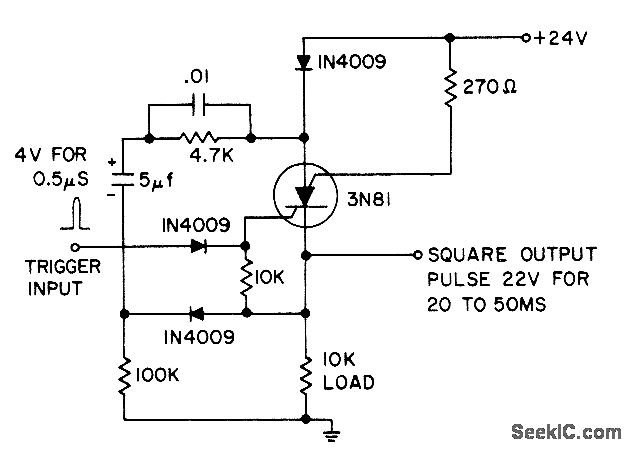

Stretch interval is determined by 5-mfd capacitor and 4.7K resistor.- Transistor Manual, Seventh Edition, General Edition Co, 1964, p 435.
