SCR_FOR_HORIZONTAL_OUTPUT

Published:2009/7/20 20:54:00 Author:Jessie | From:SeekIC

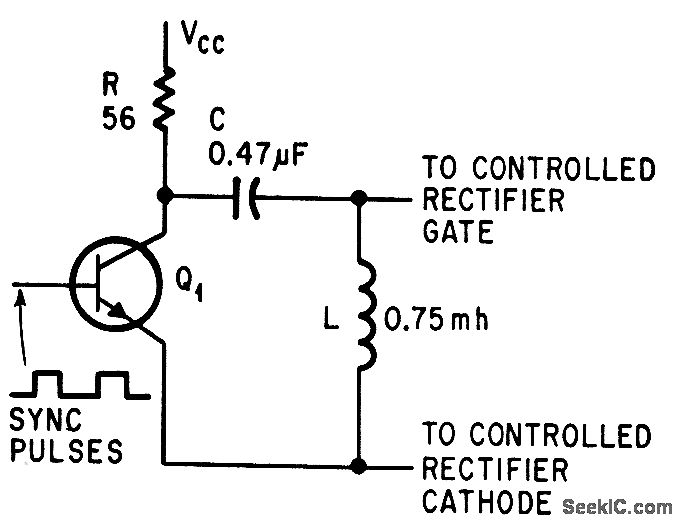

Sync pulses saturate driver Q1, permitting C to charge, for achieving fast turnoff after pate-turnoff scr conducts yoke current for 27 microsec to defect electron beams.-L. D. Shergalis, Scr's for 19-Inch Tv, Electronics, 37:23, p 97-98.
