SAWTOOTH_CLIPPER

Published:2009/7/17 2:47:00 Author:Jessie | From:SeekIC

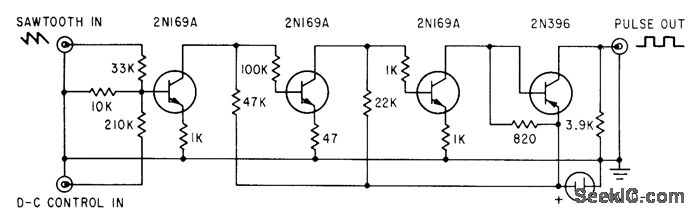

High-gain amplifier converts sawtooth input to rectangular out.put pulse whose width is proportional to portion of sawtooth amplitude that is above threshold level.-B. E. Mathews and F. R. Sias, Jr., Testing Space Craft with Induction Heaters, Electronics, 35:34, p 38-41.
