Regulated_15_V_converter

Published:2009/7/24 1:52:00 Author:Jessie | From:SeekIC

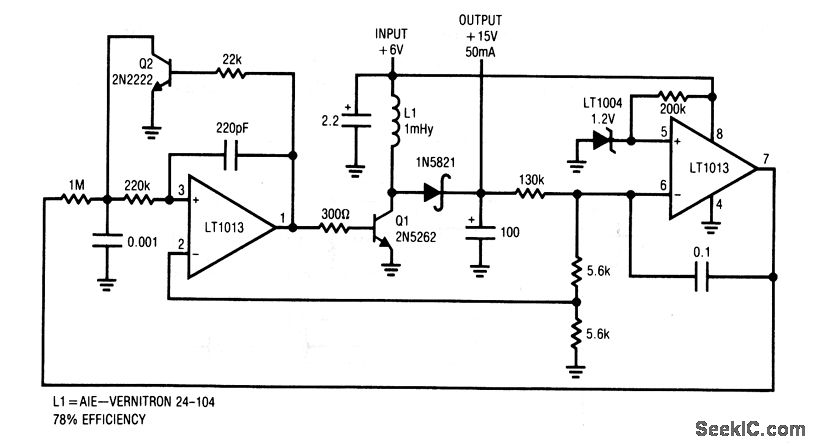

This circuit delivers a 15-V output to a 50 mA load from a 6-V battery. Efficiency is 78%. Regulation is within 0.05% over a wide range of output loads, with a typical temperature coefficient of 50 ppm/°C.
