RE_bias_source_SOE_style_tpacknge

Published:2009/7/24 3:28:00 Author:Jessie | From:SeekIC

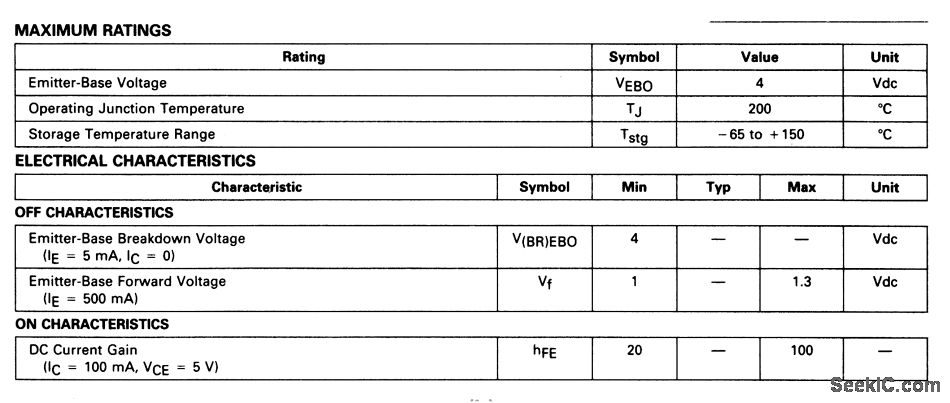

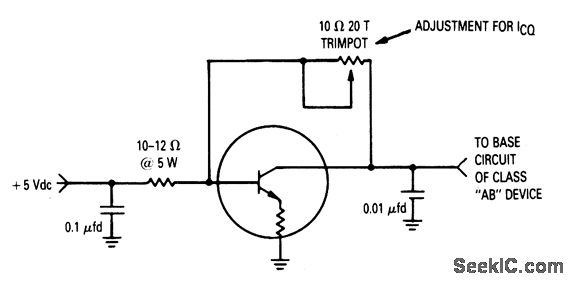

The BT500F shown in this circuit is designed for use in class-AB amplifiers to provide a thermally tracked bias source. The electrical characteristics are given in Fig. 2-45B.
