RESISTANCE_COMPARATOR

Published:2009/7/17 4:32:00 Author:Jessie | From:SeekIC

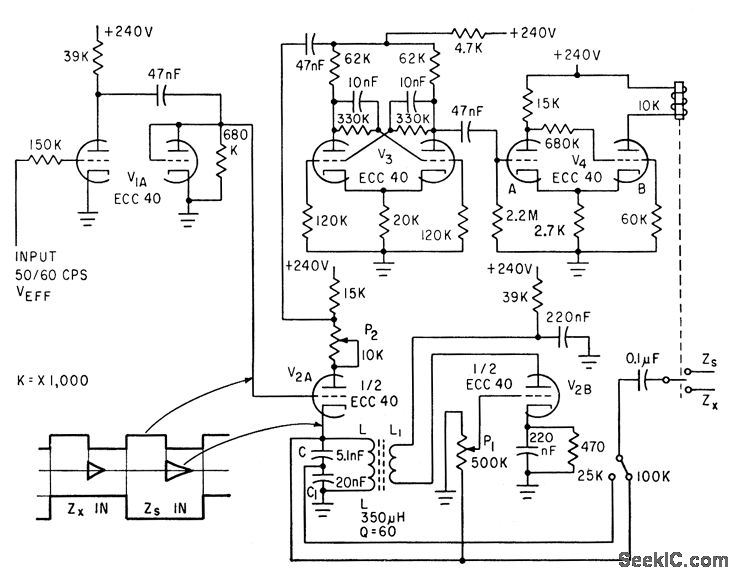

Known and unknown resistances are connected alternately, across shock-excited oscillator by flip-flopdriven relay, and damping effect is observed on cro.-A. Kislovsky, Comparing Resistances with Oscillator and Oscilloscope, Electronics, 34:23, p 118.
