REINARTZ_OSCILLATOR

Published:2009/6/23 2:09:00 Author:Jessie | From:SeekIC

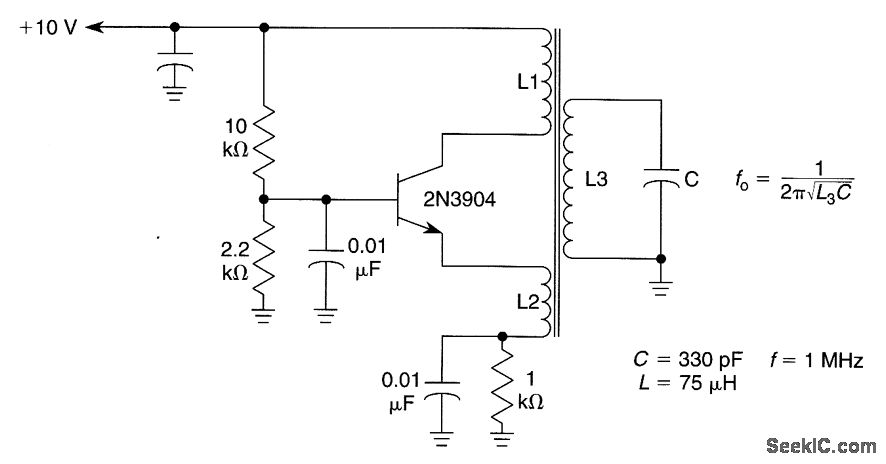

This oscillator uses mauctivity coupled emitter and collector windings to its main tank circuit.Take care so that L1 and L2 are not coupled to each other, otherwise this circuit is susceptible to parasitic at other frequencies.Typically ,L1 has 5 to 10 times the number of turns that L2 has.L1，L2，L3 are woundon same coil form. This oscillator is more suited to lower frequencies，≤10 MHz.
