REGULATOR_FOR_700_V_LOW_CURRENT_SUPPLY

Published:2009/7/16 21:45:00 Author:Jessie | From:SeekIC

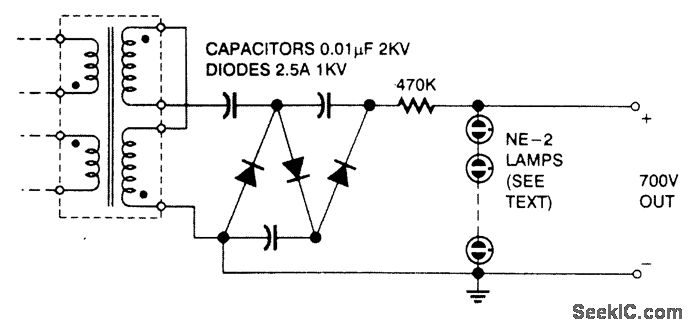

If you need a regulated output, change the voltage doubler to a tripler, and use neon lamps as a regulator. The number of lamps you will need will depend on the characteristics of the lamps used, and will have to be found by experimentation. Each lamp has approximately a 55- to 70-V the break-down voltage. The lamps should be shielded from light (or painted black) because light can influence the breakdown voltage.
