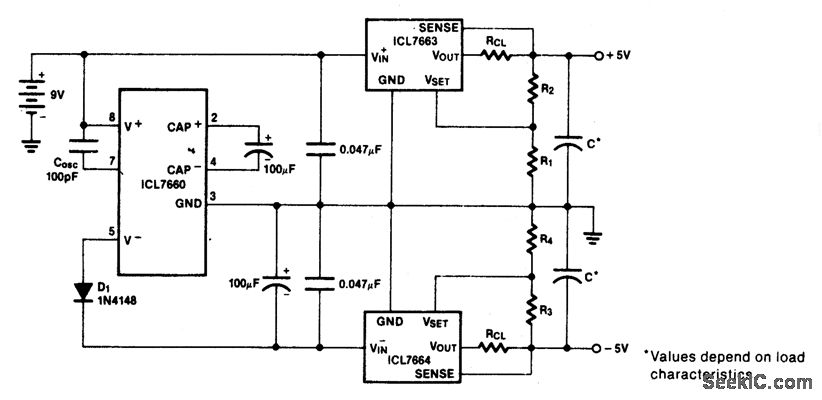

REGULATED_SPLIT_POWER_SUPPLIES_FROM_A_SINGLE_SUPPLY

Published:2009/6/28 21:17:00 Author:May | From:SeekIC

The oscillation frequency of the ICL7660 is reduced by the external oscillator capacitor, so that it inverts the battery voltage more efficiently.
