REFERENCE_AMPLIFIER_TESTS_POWER_SUPPLY_STABILITY

Published:2009/7/20 22:03:00 Author:Jessie | From:SeekIC

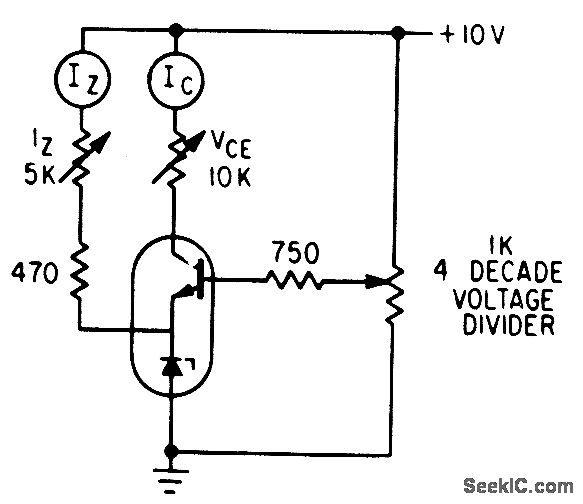

Integrated transistor and tenor diode serve as reference amplifier for testing effects of temperature on output voltage. After amplifier is heated or cooled, voltage divider is adjusted to restore initial collector current, and change in reference voltage is read from voltage divider scale to within 1 my.-T. P. Sylvan, New Device Simplifies Power Supply Design, Electronics, 36:20, p 39-43.
