RASTER_HORIZONTAL_SWEEP_GENERATOR

Published:2009/7/16 21:09:00 Author:Jessie | From:SeekIC

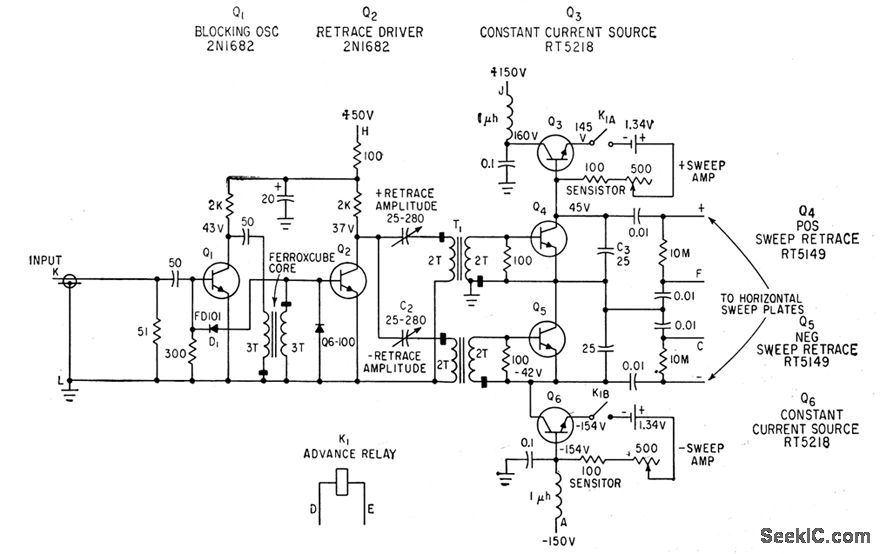

Input from 400-kc timing generator triggers Q4 through Q2 and T1,making C3 discharge to Provide sweep retrace, Negative sweep is similar except that capacitor is charged from minus 150 v.－R. P. Rufer and W.A. Karlotski, Use Raster Oscilloscopes for Faster Time Measurements,Electronics,35 52,p 38-42.
