QiSheng DVD-8829 switching power supply circuit diagram

Published:2011/4/11 4:11:00 Author:Rebekka | Keyword: Singular sound , switching power supply | From:SeekIC

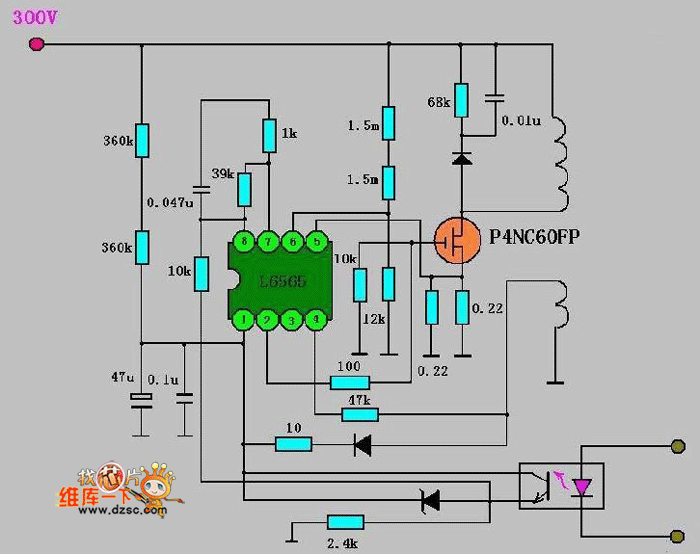

Here is the schematic diagram of theQiShengDVD-8829 switching power supply circuit:
