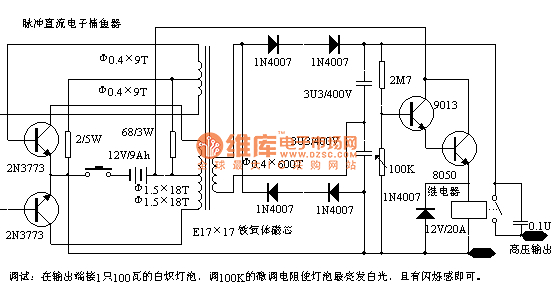

Pulsed dc electronic fishing device

Published:2011/7/18 6:37:00 Author:Christina | Keyword: Pulsed, dc, electronic, fishing device | From:SeekIC

Debugging: you can connect a 100W incandescent lamp to the output port, you can adjust the 100K trimming resistance to make the lamp in the brightest state with the flashing feeling.
