Product_V_F_convertermultiplier

Published:2009/7/24 1:37:00 Author:Jessie | From:SeekIC

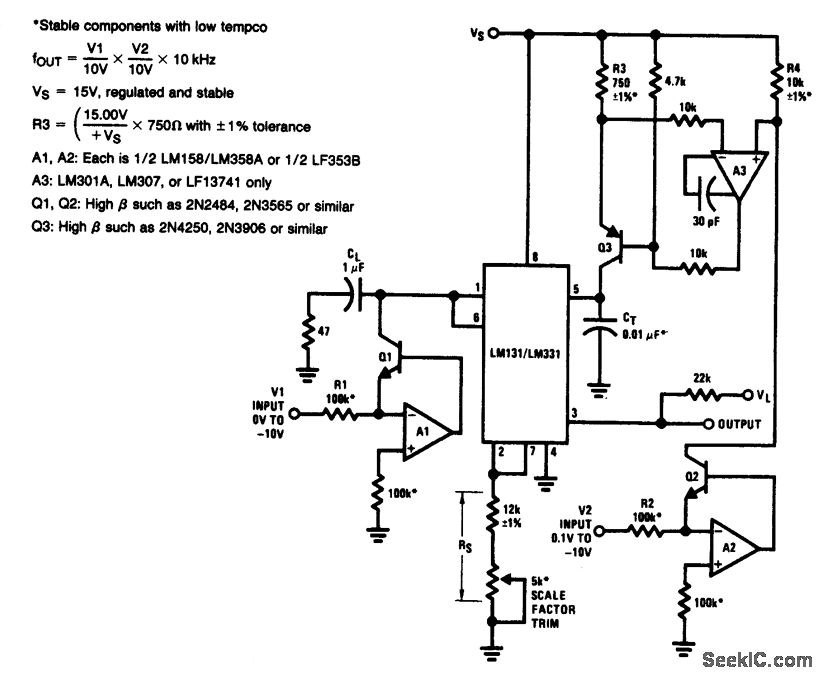

Fig.2-26 This circuit converts the product of two voltages to an equivalent frequency. The 5-kΩ scale-factor trim is adjusted so that the frequency output equals the ratio of V1/V2, as shown by the equations.
