Precision_10_volt_reference_with_fine_trim_adjustment

Published:2009/7/20 20:56:00 Author:Jessie | From:SeekIC

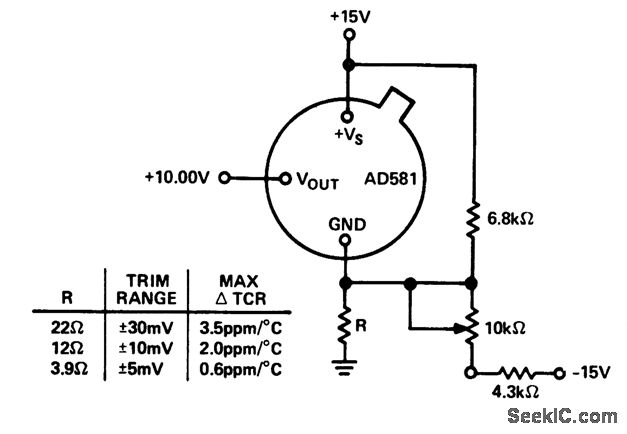

Precision 10-volt reference with fine trim adjustment (courtesy Analog Devices, Inc.).
