Power Supply For Throttles Schematic

Published:2013/6/25 21:55:00 Author:muriel | Keyword: Power Supply , Throttles Schematic | From:SeekIC

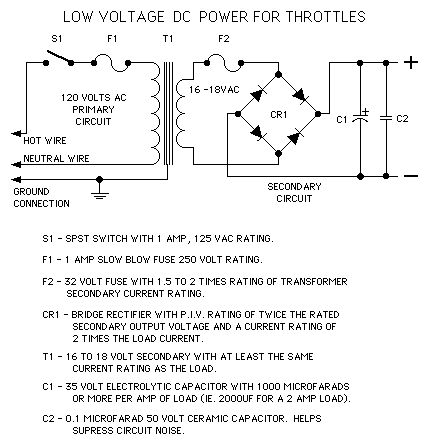

The first schematic is of the Direct Current power supply for the throttles. Shown is the primary and secondary circuits and the components needed to power the throttles. As this section of the throttles uses 120 volt AC power great caution should be taken in this area. All transformers should be mounted in a fully enclosed metal cabinet and properly grounded. Transformers for multiple units could be centrally located and the low voltage AC then routed to each throttle.
