Power Line Carrier Remote Control Switched Circuit

Published:2011/8/1 19:38:00 Author:Zoey | Keyword: Power Line Carrier, Remote Control, Switched Circuit | From:SeekIC

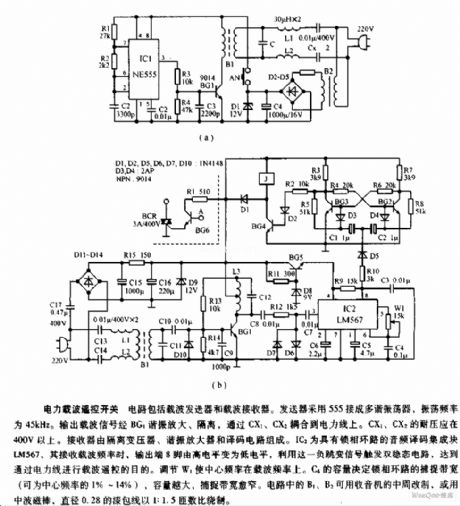

This circuit is composed of carrier transmitter and carrier receiver. The transmitter uses a 555 and is jionted to be a multi-vibrator, whose oscillation frequency is 45kHz. Output carrier signal is amplified and isolated by BG1 resonance and then it is coupled to the power line. The receiver is composed of a isolation transformer, a resonance amplifier and a decoding circuit.
