Photoelectric ignition circuit

Published:2011/4/22 20:36:00 Author:Nicole | Keyword: photoelectric ignition circuit | From:SeekIC

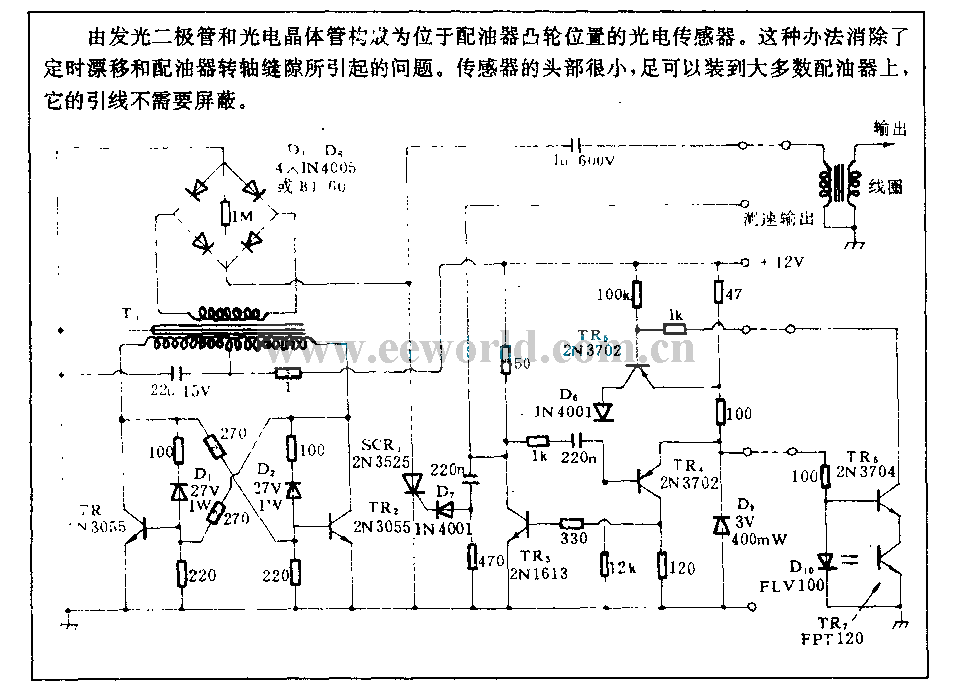

Located at re-greasing distributor cam, the photoelectric sensor is composed of LED and phototransistor. It can eliminate the problems produced by timing drift and re-greasing distributor transfer oil gap. The head of sensor is very small, it can be fixed in majority of re-greasing distributor, its lead wire has no need of shielding.
