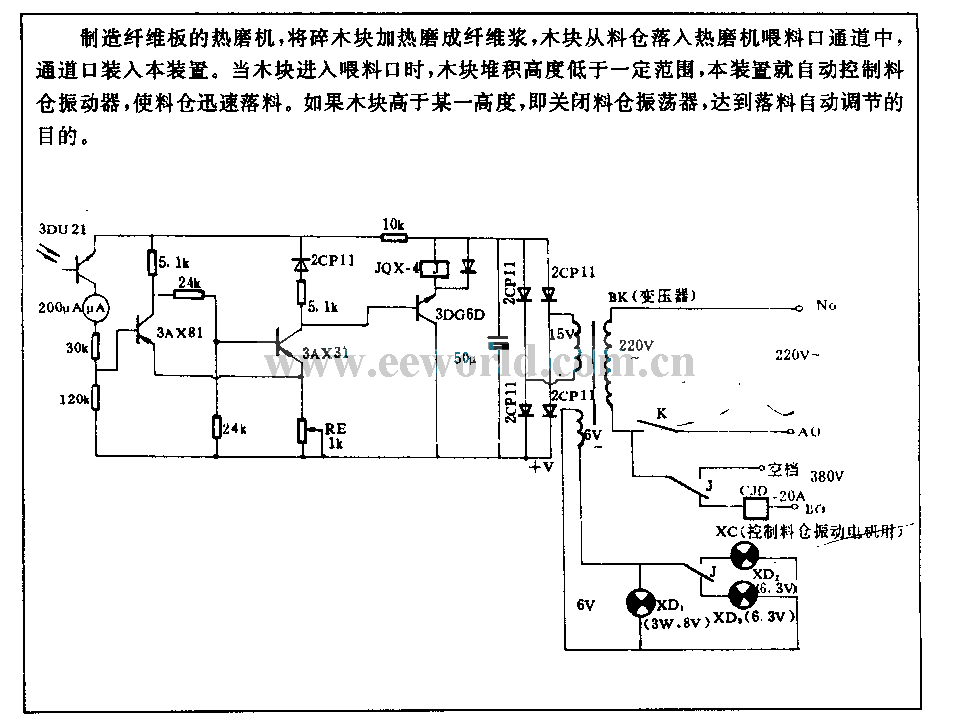

Photoelectric automatic acid feeding old tune device circuit

Published:2011/4/22 20:19:00 Author:Nicole | Keyword: acid feeding, old tune | From:SeekIC

Defibrator is used to produce fiberboard, it can heat the wood chipboard and then grind into fiber pulp, the block falls from storage hopper to defibrator feed inlet channel, this device is fixed in the port. When the block is entering the feed inlet, this device will automatically control the storage hopper vibrator if the piling height of block is lower than a certain limit, to make the storage hopper fast blanking. If the block is higher than a height, it will close the storage hopper vibrator, to achieve the purpose of automatical adjustment.
