PWM_TELEMETRY

Published:2009/7/16 21:21:00 Author:Jessie | From:SeekIC

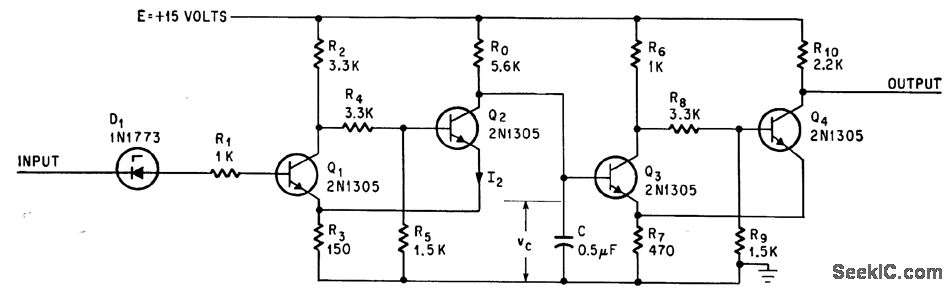

Width or height of input pulse determines whether trigger Q1-Q2 will be on long enough for C to charge to voltage that will make trigger Q3-Q4 produce output pulse.-R. G. Ferrie, One Discriminator Senses Pulse Width and Height, Electronics, 38:8, p 90-91.
