PULSE_HEIGHT_DETECTOR

Published:2009/7/16 5:31:00 Author:Jessie | From:SeekIC

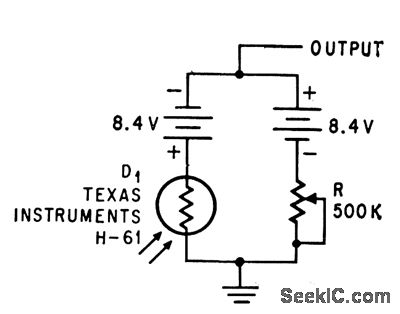

Photodiode held against screen of scope unbalances bridge when illuminated by pulse on screen. Bridge output can control another scope for displaying and measuring pulses whose amplitude and period vary randomly.-I. Baird, Pulse Frequency Measured by Photoconductor and Scopes, Electronics, 38:13, p 77.
