PREFERRED_250_V_D_C_REGULATOR

Published:2009/7/20 7:09:00 Author:Jessie | From:SeekIC

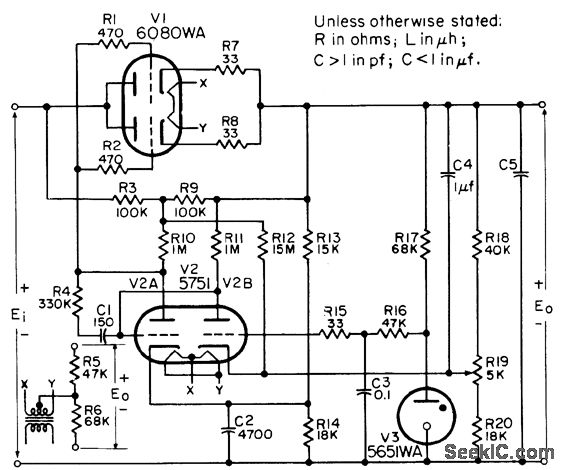

Provides either polarity of output with 1% regulation, from minimum of 300 v d-c. C5 is minimum of 4 mfd.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, PC 7, p 7-2.
