PRECISION_POSITIVE_CURRENT_SOURCE

Published:2009/6/15 21:28:00 Author:May | From:SeekIC

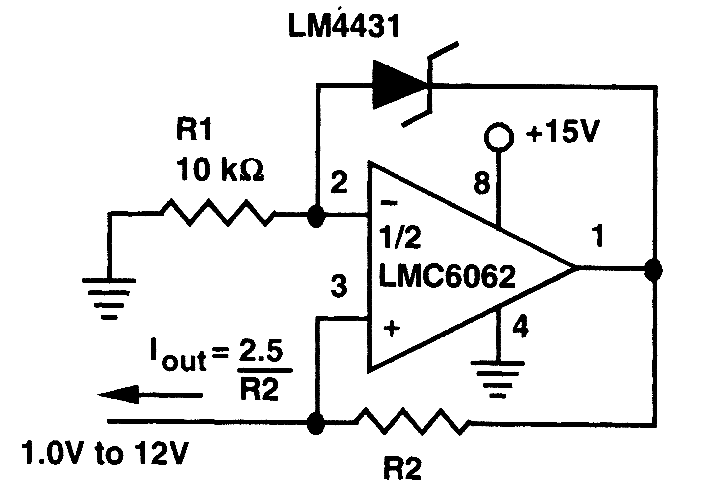

An LM4431 precision 2.5-V reference and an LMC6062 op amp to make a positive current source, from 1mA to 10mA.
