POWER_SUPPLY_MONITOR_MEMORY_PROTECTOR

Published:2009/7/16 21:25:00 Author:Jessie | From:SeekIC

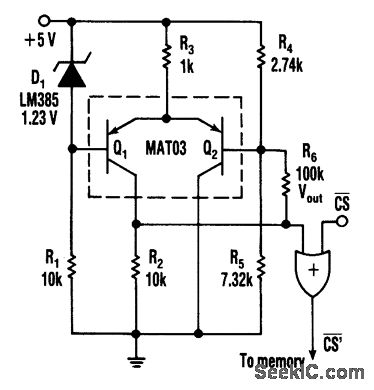

This circuit detects low-voltage supply conditions, down to 0.6 V. D1 sets the trip point of the circuit. The circuit is useful to protect memory circuits from accidental writes in the event of power-supply lowvoltage conditions, which cause other circuits to turn off, etc. Response time is about 700 ns. R6 provides some hysteresis to ensure clean transitions.
