POSITIVE_REFERENCE_REGULATOR_1

Published:2009/7/20 7:40:00 Author:Jessie | From:SeekIC

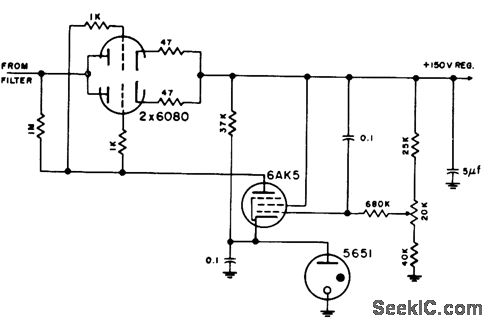

Has self-contained 150-v positive reference potential for pentode regulator, but gives only marginal operation.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-4.
