POSITION_SENSOR_POTENTIOMETER

Published:2009/7/16 23:34:00 Author:Jessie | From:SeekIC

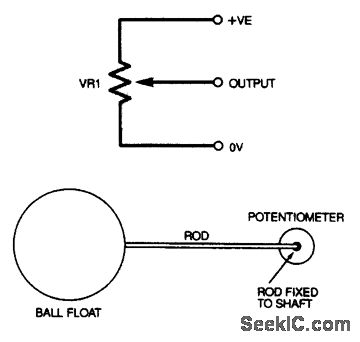

A potentiometer can be used for position-to-voltage sensing. This figure shows the use of a po-tentiometer to sense water-level changes.
