PNP_EXCLUSIVE_OR_LOGIC

Published:2009/7/16 4:54:00 Author:Jessie | From:SeekIC

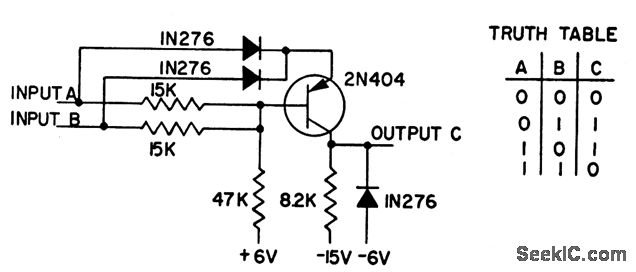

For use with0 (ground) and -6 v logic system. Can be adapted readily to most other logic levels. Produces logic 1 when inputs disagree.-Exclusive OR Uses One Transistor, Electronic Circuit Design Handbook， Mactier Pub. corp，N.Y.1965,p213．
