PIN_DIODE_SWITCH_AND_ATTENUATOR_CIRCUIT

Published:2009/7/16 22:15:00 Author:Jessie | From:SeekIC

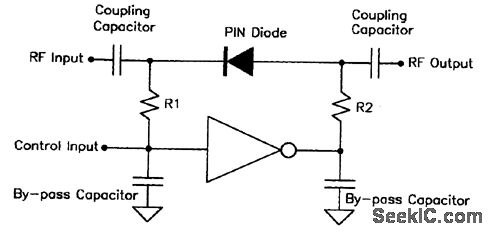

This circuit is a basic PIN-diode switch building block. R1 is chosen from Idiode=(Vcc-Vdiode)/(R1+R2) ,where Idiode is the specified diode current.
