PHOTOMULTIPILIER_SUPPLY

Published:2009/7/21 4:46:00 Author:Jessie | From:SeekIC

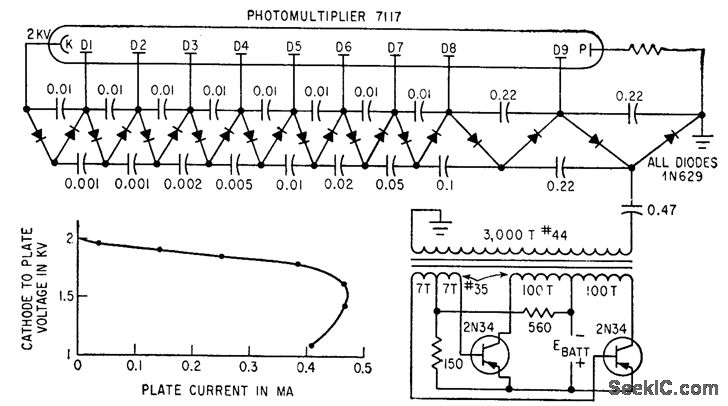

String of Cockcroft-Walton voltage doublers multiplies a-c output voltage of blocking oscillator to step up battery voltage to required 2 kv. Regulation is reasonably constant up to 0.4 ma plate current. –R. P. Rufer, Battery Powered Converter Runs Multiplier Phototube, Electronics, 33:28, p 51.
