PHASE_DIFFERENCE_BRIDGE

Published:2009/7/16 5:33:00 Author:Jessie | From:SeekIC

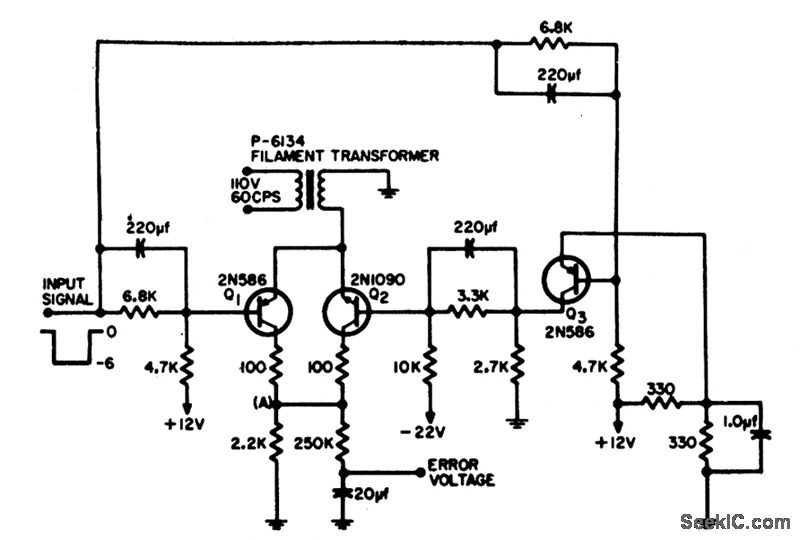

Develops d-c error voltage proportional to phase difference between two applied signals, one of which is 60-cps line-frequency reference. Can also correct oscillator outputs and serve as pulse-width discriminator.-D. P. Dorsey, Transistor Bridge Detector, EEE, 13:1, p 75.
