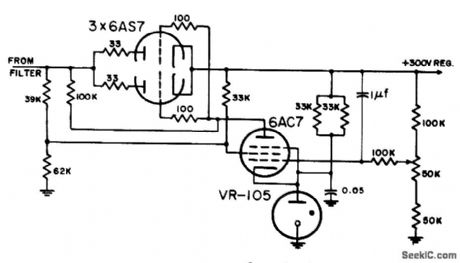

PENTODE_WITH_RIPPLE_SUPPRESSION

Published:2009/7/20 22:02:00 Author:Jessie | From:SeekIC

Screen is fed jointly from regulated and unregulated sides of supply, to reduce ripple. Plate load is low (100,000 ohms), providing good frequency response but increasing current fluctuations in VR-105.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-2.
