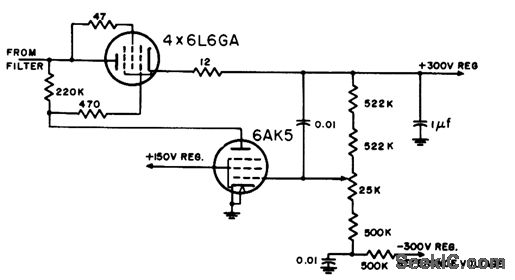

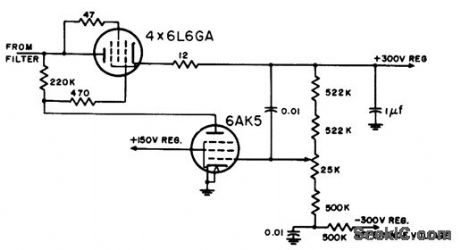

PENTODE_WITH_CONSTANT_REFERENCE_CURRENT

Published:2009/7/20 21:45:00 Author:Jessie | From:SeekIC

screen is fed directly from regulated voltage of shunt-regulating supply using VR-105 and VR-150 reference lubes to give -300 v.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-2.
