OVERVOLTAGE_CROWBAR

Published:2009/7/19 23:17:00 Author:Jessie | From:SeekIC

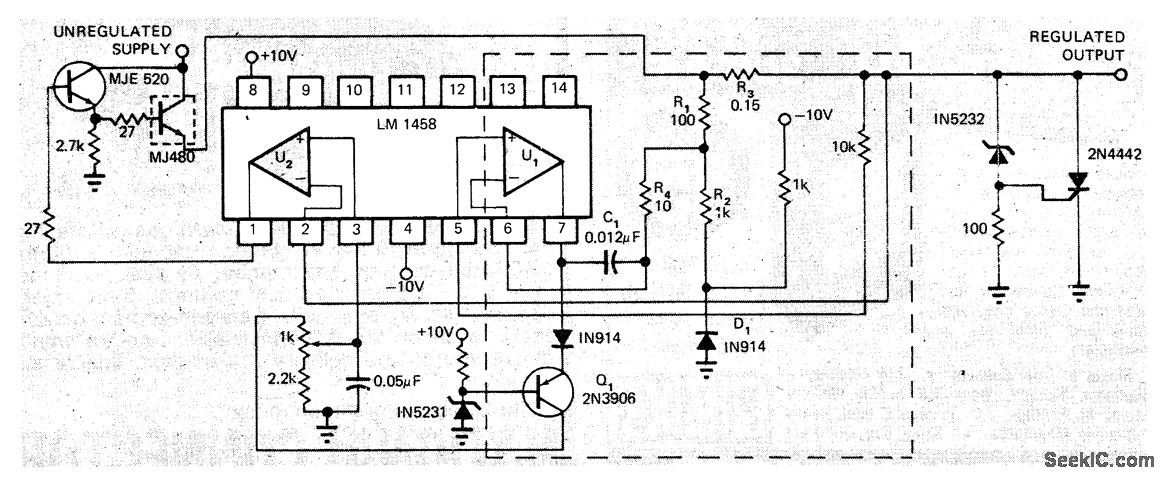

Components within dashed lines protect regulator IC from over current condition frequently encountered when zener-SCR crowbar is used across output.Regulated output is 5 V with IC shown. Article gives operating details of circuit and equation for shutdown time, which is about 1 s.-S. J. Pirkle, Circuit Protects Power Supply Regulator from Overcurrent, EDN Magazine, Feb. 5, 1973, p89.
