OP_AMP_AUDIO_MIXER

Published:2009/6/23 4:13:00 Author:May | From:SeekIC

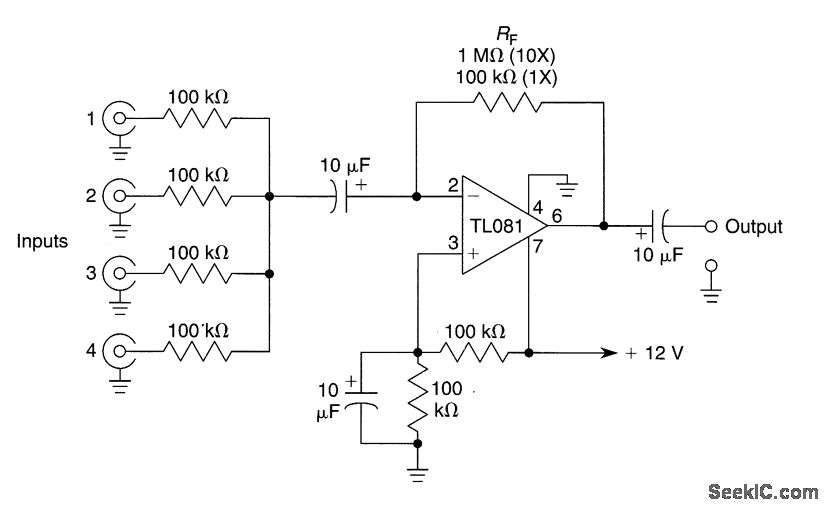

This circuit will mix several audio signals to a common output.RF can be made 1 MΩ for 10 ×(20dB) or 100kΩ for unity gain.
