NPN_AND_GATE

Published:2009/7/16 4:55:00 Author:Jessie | From:SeekIC

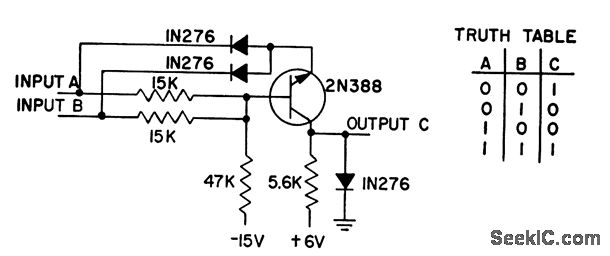

Two diodes act as conventional and gate with transistor and its collector supply, using few components. Intended for 0 and -6 V logic.-Exclusive OR Uses One Transistor, Electronic Circuit Design Handbook, Mactier Pub. Corp., N.Y., 1965, p 213.
