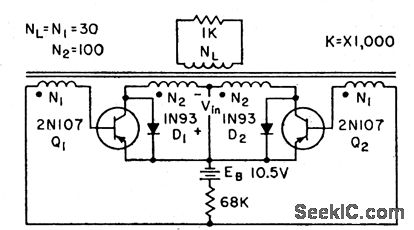

NONDIFFERENTIAL_MAGNETIC_INVERTER_1

Published:2009/7/17 1:47:00 Author:Jessie | From:SeekIC

Is analogous to free-running capacitor-coupled mvbr. Frequency and output amplitude are both directly proportional to input voltage. Chief drawback is need to increase input voltage to get higher frequency, which in turn increases all winding voltages.-J. Markus, Handbook of Electronic Control Circuits, McGraw-Hill, N.Y., 1959, p 102.
