NOISE_IMMUNE_BISTABLE

Published:2009/7/16 4:11:00 Author:Jessie | From:SeekIC

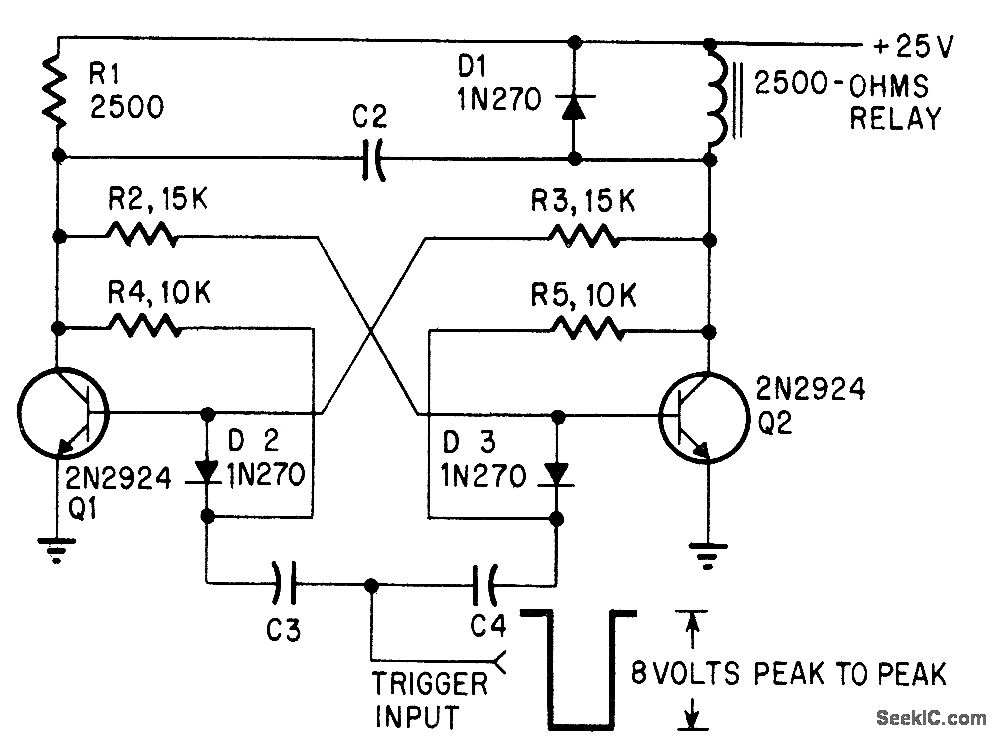

C2 gives immunity to accidental triggering by noise, though with some reduction in switching speed. When C2 is 0.1 mfd, upper frequency limit is 400 cps, and is 100 cps for O.47 mfd. -R. W. Simister, Bistable Multivibrator Immune to Noise, Electronics, 39:6, p 97.
