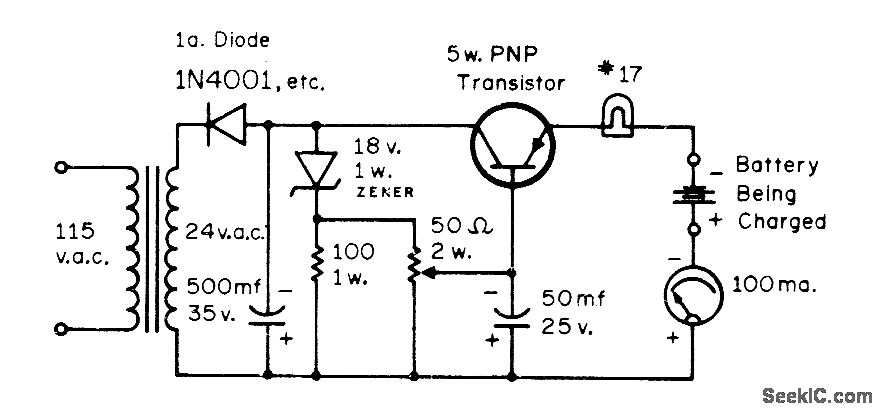

NICAD_CHARGER_1

Published:2009/6/29 22:42:00 Author:May | From:SeekIC

Pot is adjusted to provide 10% above rated voltage (normal full-charge voltage) while keeping charging current below 25% of maximum，For 10-V 1-Ah battery，set voltage at 11 V and current below 250 mA．-G.E.Zook, F．M., CQ，Feb. 1973, p 35-37.
