NEON_WITH_PNP_EXCLUSIVE_OR_LOGIC

Published:2009/7/16 4:57:00 Author:Jessie | From:SeekIC

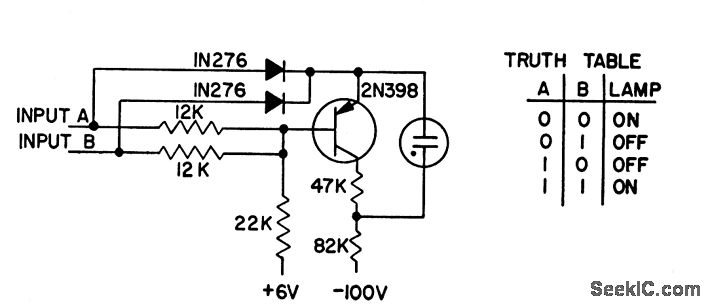

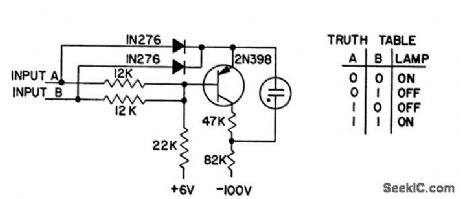

Neon lamp glows when inputs are in agreement. Indicator will follow only one control level if other input is at fixed voltage such as logic 0; lamp will then turn off whenever control input is at logic 1. Similarly, if fixed voltage is logic 1, lamp will turn off when control input is at logic 0.-Exclusive OR Uses One Transistor, Electronic Circuit Design Handbook, Mactier Pub. Corp., N.Y., 1965, p 213.
