NEON_LAMP_DRIVER_FOR_5_TO_15_V_SUPPLIES

Published:2009/6/26 3:51:00 Author:Jessie | From:SeekIC

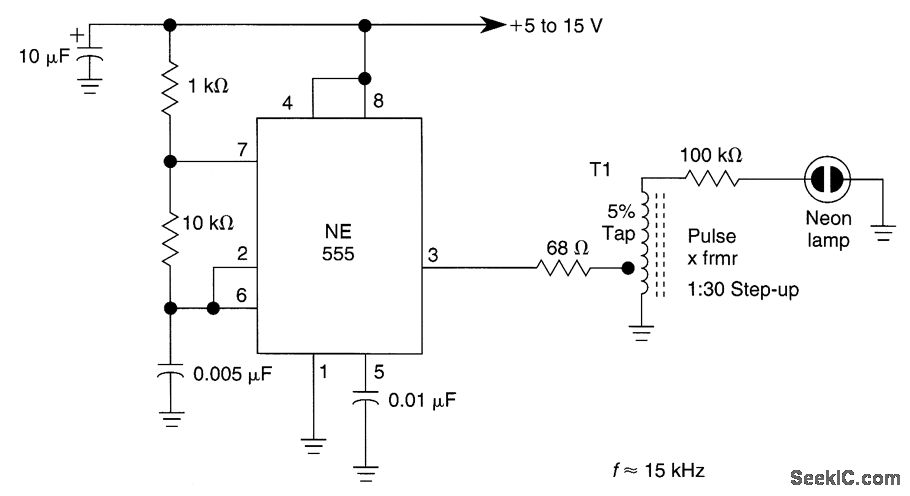

This neon-lamp driver based on the 555 T1 can be wound on an old TV flyback transformer core.
