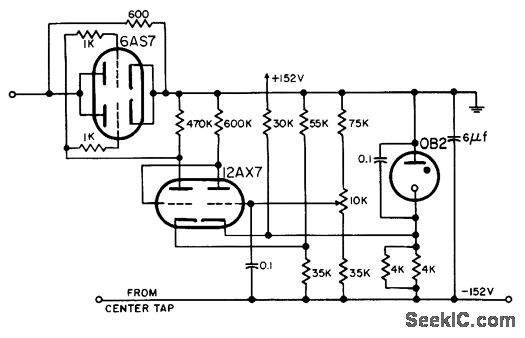

NEGATIVE_OUTPUT_152_V_REGULATOR

Published:2009/7/20 21:53:00 Author:Jessie | From:SeekIC

Operation is comparable to corresponding positive-output circuit.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-5.
