NE6O2_OUTPUT_CIRCUITS

Published:2009/7/17 2:40:00 Author:Jessie | From:SeekIC

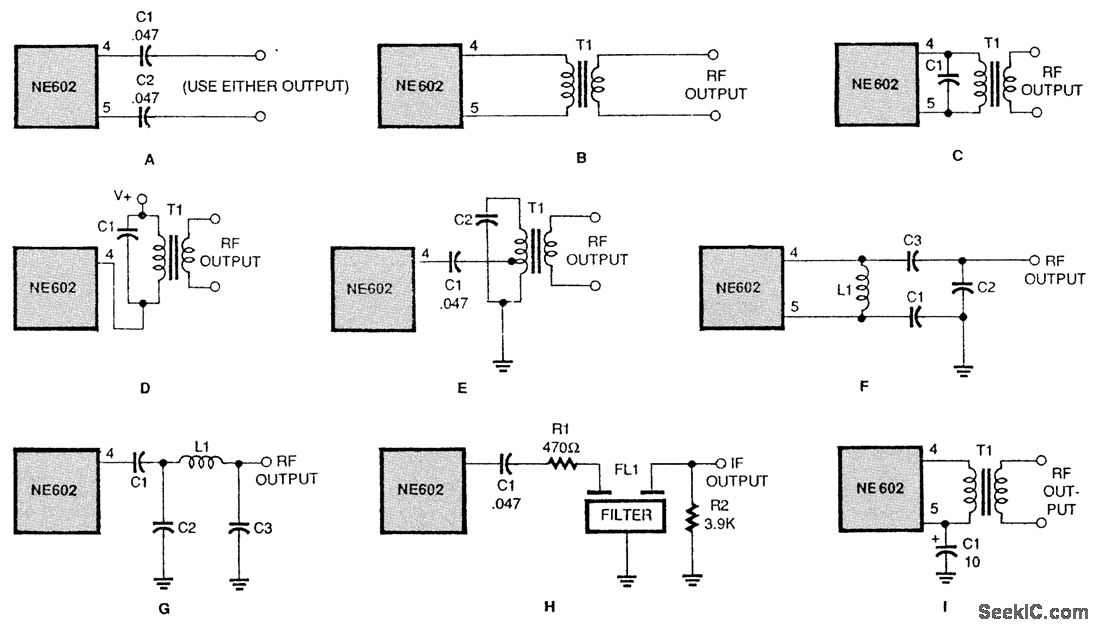

The various output circuits shown here demonstrate how to either pass all the frequencies from the NE602 or allow only the sum or difference frequencies through, depending on which circuit is used.
