NE602_MISER_CIRCUIT

Published:2009/7/17 3:20:00 Author:Jessie | From:SeekIC

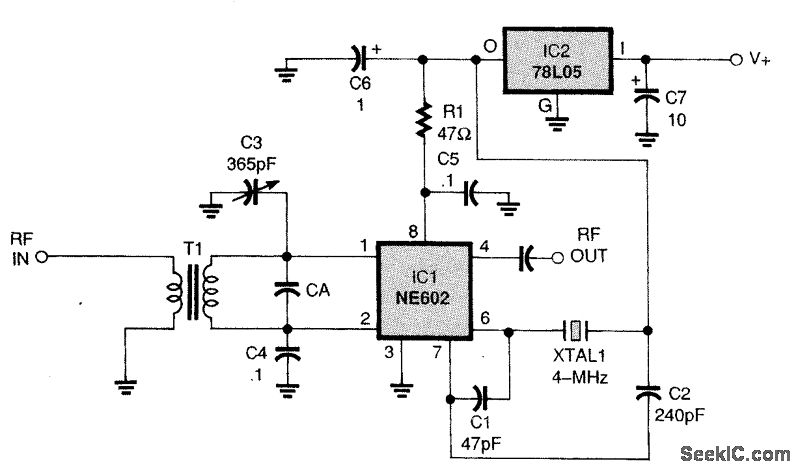

This circuit uses an NE602 as a mixer in a typical application Component values depend on operating frequency and are typical for a 4 MHz operation Note that no IF filter is shown in the RE output circuit，A filter is necessary to select the desired output product and reject the others
