NE602_DC_SUPPLY_INTERFACE

Published:2009/7/16 20:47:00 Author:Jessie | From:SeekIC

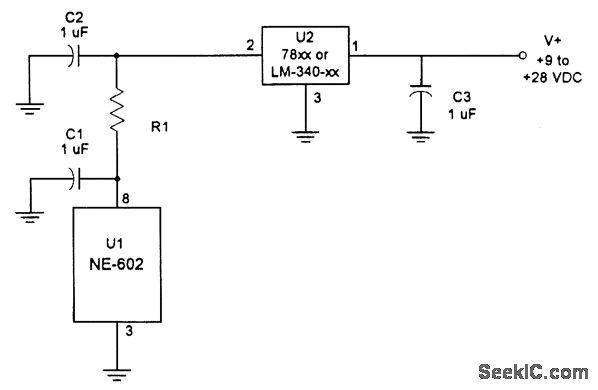

This is one method of deriving the 4.5-to 8.0－Vdc supply needed by the NE602 chip.
