NANOSECOND_PULSE_DISPLAY

Published:2009/7/15 21:48:00 Author:Jessie | From:SeekIC

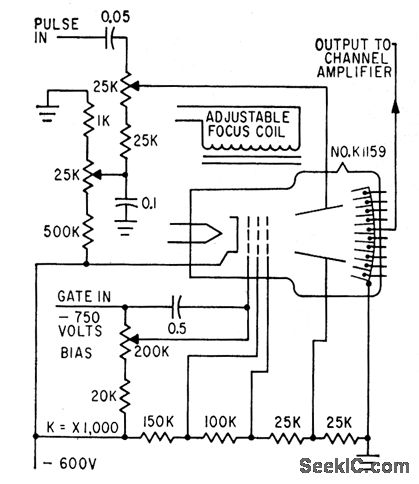

Magnetic-focus electrostatic-deflection beam-deflection tube permits pulse height analysis where pulse separation is of the order of microseconds.-J. Burns, Special Tubes for Nanosecond Display, Electronics, 33:49, p 82-85.
