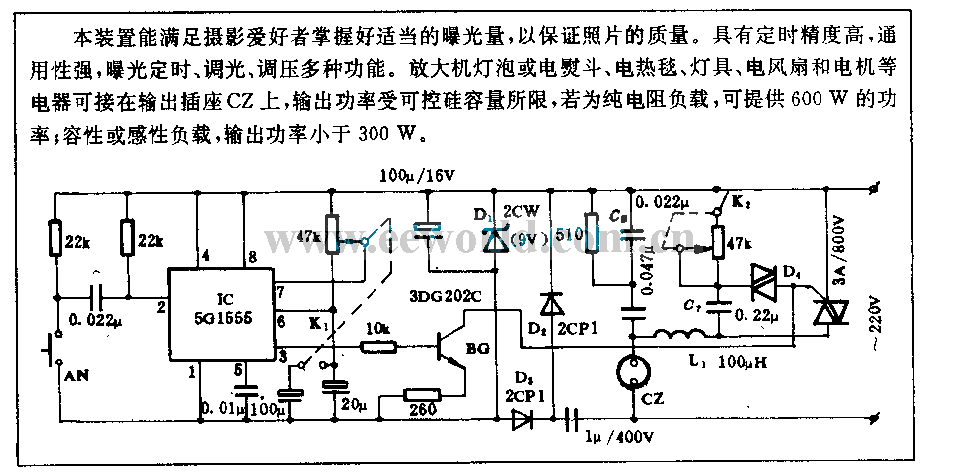

Multipurpose exposure timing circuit

Published:2011/4/6 1:46:00 Author:Nicole | Keyword: multipurpose, exposure, timing | From:SeekIC

This device can satisfy photographic fans to master proper exposure, to ensure the quality of photos. It has the functions of high precision timing, wide common use, exposure timing, dimming, voltage regulation and so on. Amplifier bulb or electric iron, heating blanket, lamp, electric fan, motor and electrical equipments can connect to the output socket CZ, the output power is limited by controlled slicon capacity, if it is pure resistance load, then it can provide 600W power; if it is capacitive or inductive load, the output power is lower than 300W.
