Micropower_voltage_reference

Published:2009/7/24 3:42:00 Author:Jessie | From:SeekIC

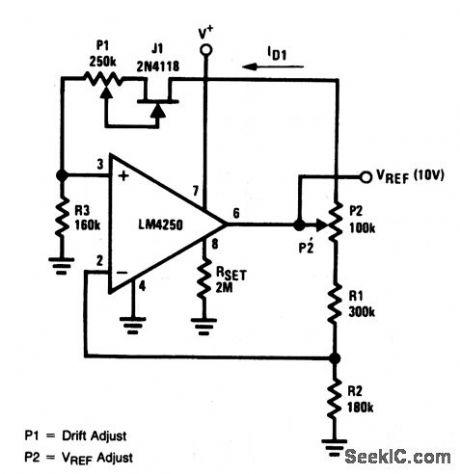

This circuit provides an adjustable voltage reference with a temperature coefficient of 0.002%/°C, and an overall standby current of less than 100 μA, using the zero-temperature-coefficient characteristic of a JFET (J1 is biased slightly below pinchoff by P1).
