MULTIVOLTAGE_POWER_SUPPLY

Published:2009/6/26 3:49:00 Author:Jessie | From:SeekIC

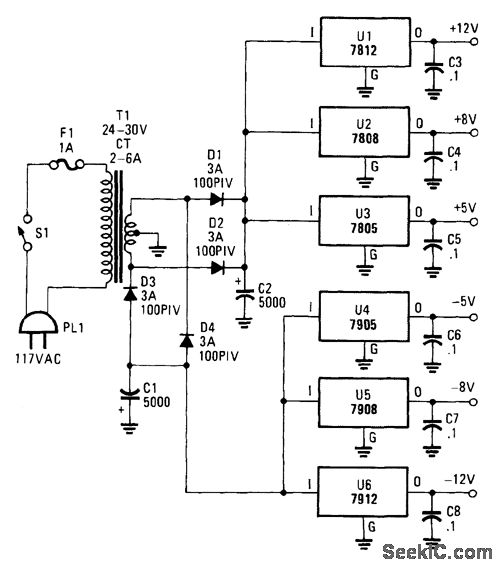

This dual-polarity, multivoltage power supply can be built for a very small investment. The circuit is built around 78XX and 79XX series 1-A voltage regulators, four 3-A diodes, a 24-30-V 2-6-A transformer, and eight filter capacitors.
