MULTIVIBRATOR_CONTROLLED__RELAY

Published:2009/7/17 4:09:00 Author:Jessie | From:SeekIC

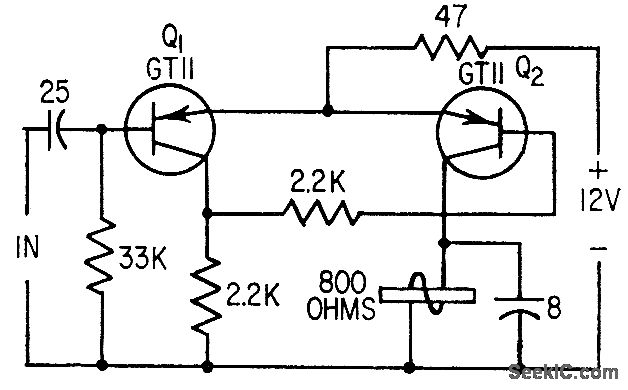

Control signal is used to trigger mvbr that operates relay when input signal is greater than predetermined level (about 10 mv), and releases relay immediately when signal falls below this level.-G. B. Miller, Multivibrator Operates Relay, Electronics, 31:49, p 106-112.
