MODULATOR_TRANSFORMER

Published:2009/7/20 23:47:00 Author:Jessie | From:SeekIC

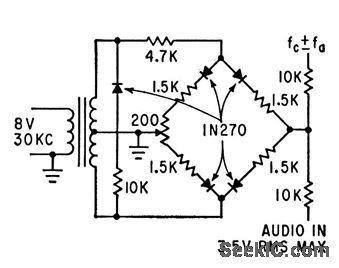

Circuit provides best possible balance between halves of center-tapped secondary, as required for precise phase splitting, in Boynton-Scholt modulator shown.-Wide-Band Transformer Covers 3 Kc to 22 Mc, Electronics, 35:25, p 66.
